Load Flow Calculation with and without Short-Circuit

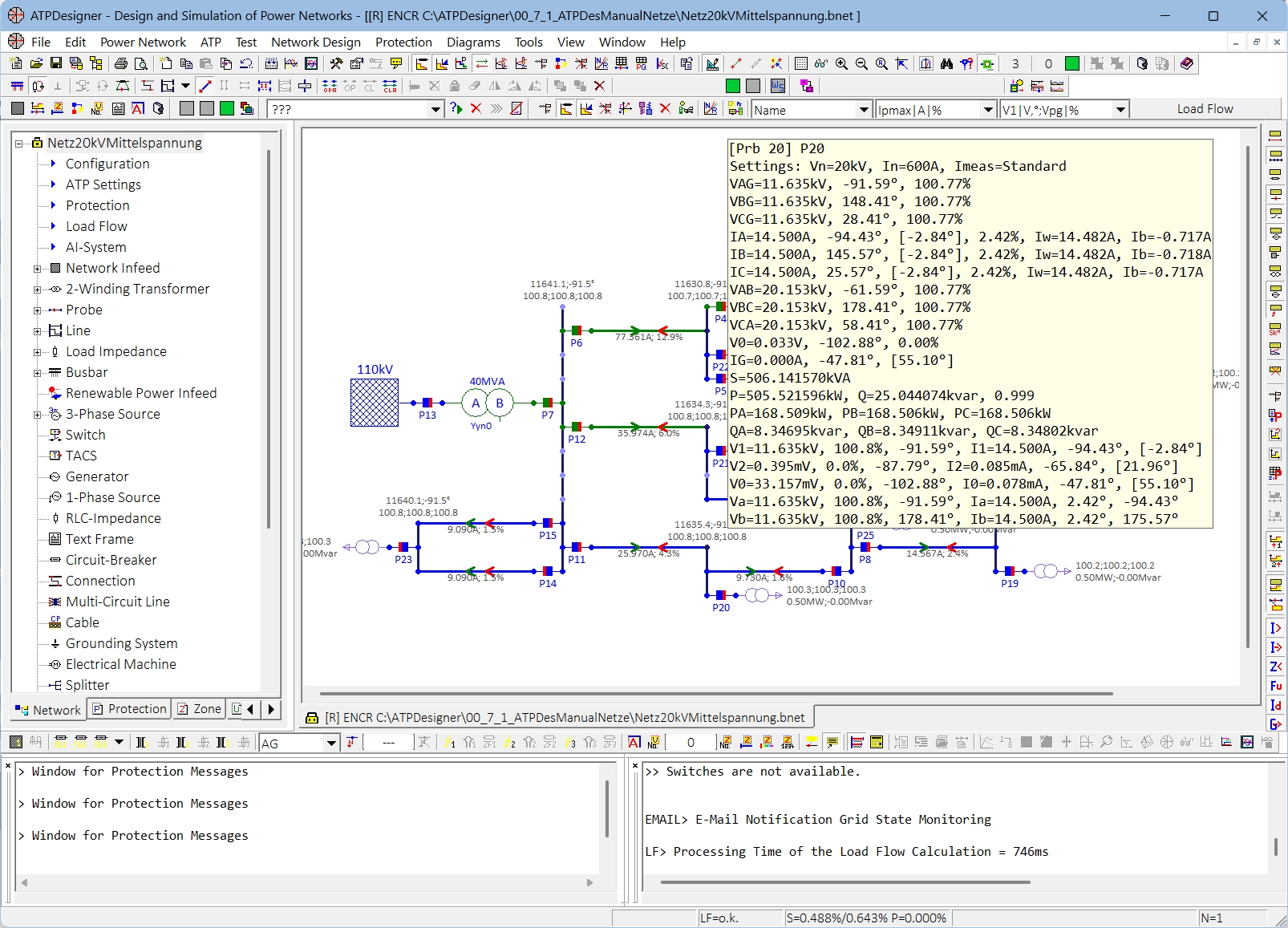

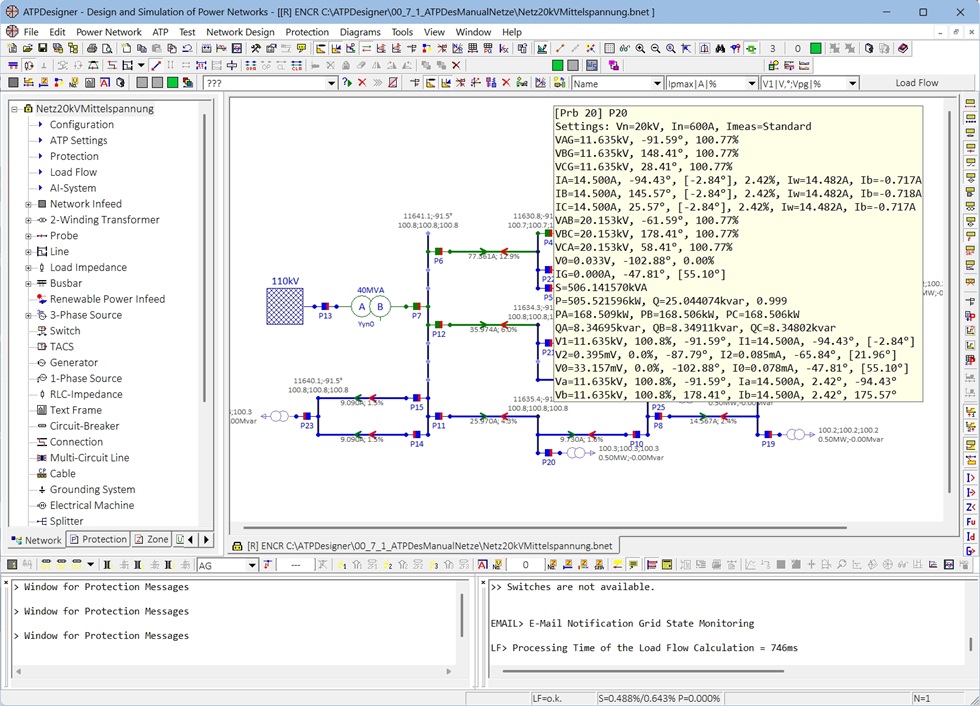

The network calculation program ATPDesigner, in conjunction with the ATP (Alternative Transients Program) solver, enables the calculation of steady-state network conditions, including those involving distributed energy generation facilities such as wind farms or solar parks, at all voltage levels and for all network protection systems, with or without short-circuit . The results of the load flow calculation are displayed in tooltips and in a Messages Window, directly in the Network View or in Reports.

The Load Flow Calculation in ATPDesigner will be also called Short-Circuit Analysis.
